Ensuring Integrity with Continuous Monitoring

Texplor has successfully implemented its MSS® Leak Monitoring System at DOW’s new concrete liquid liner basin in Stade, Germany. This advanced system provides continuous, real-time monitoring to enhance containment integrity, optimize maintenance, and extend service life.

One of eight MSS leak sensors installed in the concrete basin, ensuring continuous monitoring of the liquid sealing system.

Advanced Leak Monitoring for Enhanced Environmental Protection

Texplor’s MSS® Leakage Monitoring System continuously monitors the integrity of the newly constructed Biox concrete basin. It ensures top-tier environmental protection by detecting leaks early and preventing potential hazards. The system provides real-time monitoring, automated alerts, and immediate response to minimize environmental risks. By safeguarding stored resources and enhancing risk management, it significantly improves operational safety and efficiency.

Project Highlights

Containment System: 7,000 m² concrete basin with liquid sealing
Technology: MSS® Leak Monitoring System
Client: DOW Germany
Key Benefit: TÜV-Nord approved monitoring extends inspection intervals

Optimized Maintenance Schedules

The modular monitoring system extends service intervals, reducing the need for manual inspections. TÜV-Nord approval allows production to continue uninterrupted unless an anomaly is detected. This significantly lowers downtime and operational costs while ensuring regulatory compliance and efficiency.

Enhanced Environmental Protection

Texplor’s MSS® Leak Monitoring System ensures early leak detection, preventing potential hazards. Eight sensors continuously monitor the basin, providing real-time data and immediate alerts. By minimizing environmental risks and safeguarding stored resources, the system upholds the highest standards of protection.

Highest Operational Safety

Automated anomaly detection triggers instant notifications, allowing DOW to respond and repair leaks promptly. The explosion-proof design enhances safety and reliability in industrial environments, ensuring maximum risk management.

Key Benefits of MSS Leak Monitoring Technology

Quick Installation: Installed within days during construction or maintenance
Monitoring Cloud: Centralized, secure data access across facilities
Comprehensive Reporting: Regular updates with long-term data trends
Tailored Adaptation: Suitable for both new and existing infrastructure
Scalability: Expandable with additional sensors for corrosion, movement, and moisture monitoring

With our TÜV-Nord approved monitoring technology, DOW no longer needs to perform inspections every five years. Our system continuously verifies the basin’s integrity, offering 24/7 real-time system checks to ensure containment integrity.”
Bastian Merten, MSc.
CTO, Texplor Group

TÜV-Approved System and Reporting

DOW receives monthly reports summarizing system checks, sensor status, and alarm logs, along with a comprehensive annual report. TÜV-Nord approval extends inspection intervals, allowing the basin to remain operational without manual inspections for up to five years. Since 2020, this system has effectively reduced maintenance frequency and minimized costly downtime.

Efficient and Rapid Installation

The MSS® system is installed within days and adapts to both new and existing infrastructure. Fewer sensors lower costs while maintaining efficiency. If a leak occurs, Texplor’s FGM/EFT mobile leak detection technology pinpoints the exact location, allowing targeted repairs and minimizing downtime. With 30 years of experience, Texplor is a leader in industrial leak detection, offering proven solutions worldwide.

Proven Success – Leak Detected During Installation

The monitoring system has operated 24/7 since 2020, delivering continuous data to DOW. Remarkably, it detected its first leak during installation in dry conditions, enabling immediate corrective action before commissioning. No further anomalies have been recorded since its activation.

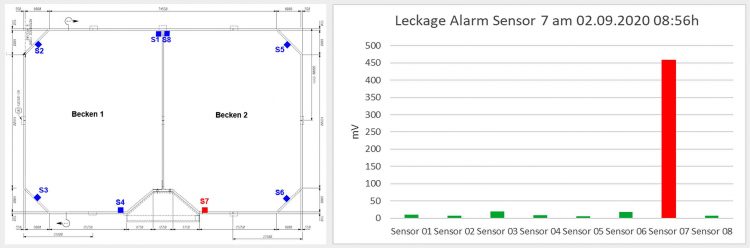

The left graphic illustrates the basin layout with sensor placements, while the right graphic highlights the sensor deflection that detected the leak.

Future-Proof System with Modular Expansion

Texplor’s monitoring system is fully scalable. Additional multi-sensors for corrosion, movement, and other parameters can be integrated into the central TEX-Sky Monitoring Cloud. Similar expansions have already been implemented in other DOW projects. The more parameters available in the network, the more comprehensive the overall picture of the asset’s condition.

Advanced Multi-Sensor Monitoring for Concrete Basins

Monitoring multiple parameters including leakage, movement, and corrosion (in testing), with add-ons for monitoring humidity, fluid levels, weather data, etc.
